1473149-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1473149-1
Datasheet:
Description:

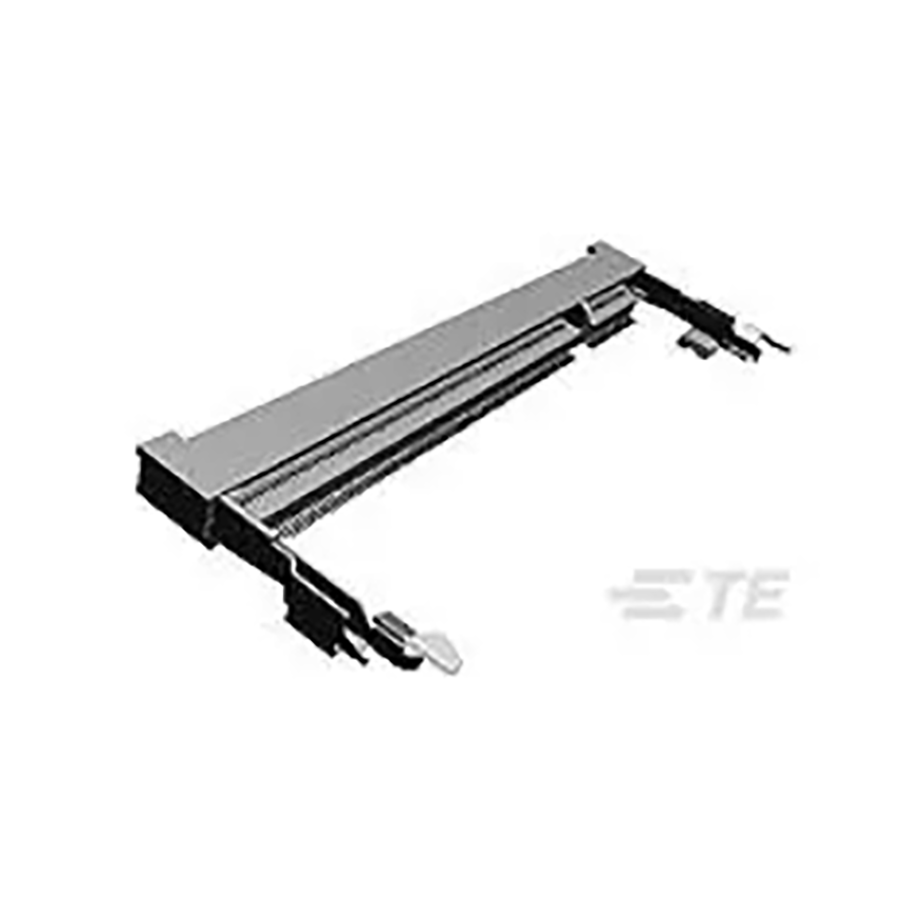

Card Edge Connectors SMD/SMT Number of Positions:200 Right Angle Contact Plating:Gold Female
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 600 µm |
| Gender | Female |
| Number of Contacts | 200 |
| Connector Type | SODIMM Socket |
| Contact Type | |
| Number of Positions | 200 |
| Number of Rows | 2 |
| Card Thickness | |
| Housing Material | Thermoplastic (TP) |
| Mounting Angle | Right Angle |
Stock: 1020
Distributors
pcbx
pcbxUnit Price$3.22309
Ext.Price$3.22309
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.22309 | $3.22309 |
| 10 | $2.89137 | $28.91370 |
| 25 | $2.71368 | $67.84200 |
| 50 | $2.54691 | $127.34550 |
| 100 | $2.39038 | $239.03800 |
| 300 | $2.29130 | $687.39000 |
| 500 | $2.19631 | $1098.15500 |
